kernel.models.Kernel Class Reference

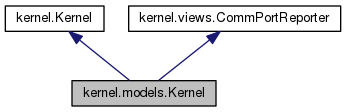

Inheritance diagram for kernel.models.Kernel:

Collaboration diagram for kernel.models.Kernel:

Public Member Functions
	Kernel (PortDriver portDriver)
CommPortReporter	getCommPortReporter ()
List< String >	getSerialPortNames ()
Boolean	isPortInUse (String portName)
PortDriver	getPortDriver ()
kernel.controllers.DeviceRegistry	getDeviceRegistryController ()
DeviceContainer	getDeviceRegistryView ()
TDKLambdaPowerSupplyFactory	getPowerSupplyFactory ()
ModbusConnector	getModbusConnector ()
kernel.controllers.PVCiPressureGaugeFactory	getPressureGaugeFactory ()
kernel.views.VariableProviderContainer	getVariableProvidersView ()
VariableProviderContainer	getVariableProvidersController ()
TaskRunner	getTaskRunner ()
void	setTaskRunner (TaskRunner runner)

Detailed Description

Contains methods for working with application hardware, getting the necessary views and controllers for working with the UI

Definition at line 23 of file main/java/kernel/models/Kernel.java.

Constructor & Destructor Documentation

kernel.models.Kernel.Kernel

(

PortDriver

portDriver

)

Parameters

portDriver

The driver to be used for managing the RS232 serial port

Definition at line 69 of file main/java/kernel/models/Kernel.java.

                                        {
        this.portDriver = portDriver;
        this.deviceRegistry = new kernel.models.DeviceContainer();
        createTDKLambdaPowerSupplyFactory();

        log.info("Started kernel {}", this.toString());

        createPVCIPressureGaugeFactory();
        createVariableProviderRegistry();
    }

Member Function Documentation

CommPortReporter kernel.models.Kernel.getCommPortReporter

(

)

Returns

An implementation of CommPortReporter that can report serial port names

Implements kernel.Kernel.

Definition at line 85 of file main/java/kernel/models/Kernel.java.

                                                           {
        return this;
    }

kernel.controllers.DeviceRegistry kernel.models.Kernel.getDeviceRegistryController

(

)

Returns

a kernel.controllers.DeviceRegistry used for adding or updating which devices are in the kernel.models.DeviceContainer

Implements kernel.Kernel.

Definition at line 124 of file main/java/kernel/models/Kernel.java.

                                                                          {
        return this.deviceRegistry;
    }

DeviceContainer kernel.models.Kernel.getDeviceRegistryView

(

)

Returns

a DeviceContainer used for looking up devices that have been created

Implements kernel.Kernel.

Definition at line 134 of file main/java/kernel/models/Kernel.java.

                                                  {
        return this.deviceRegistry;
    }

ModbusConnector kernel.models.Kernel.getModbusConnector

(

)

Returns

A connection manager for making MODBUS connections over RS232

Implements kernel.Kernel.

Definition at line 152 of file main/java/kernel/models/Kernel.java.

                                               {
        return new ModBusConnectionManager();
    }

PortDriver kernel.models.Kernel.getPortDriver

(

)

Returns

A PortDriver used for making RS232 connections, and managing RS232 ports in this system

Implements kernel.Kernel.

Definition at line 114 of file main/java/kernel/models/Kernel.java.

                                     {
        return this.portDriver;
    }

TDKLambdaPowerSupplyFactory kernel.models.Kernel.getPowerSupplyFactory

(

)

Returns

A factory bean useful for creating instances of devices.PowerSupply

Implements kernel.Kernel.

Definition at line 143 of file main/java/kernel/models/Kernel.java.

                                                              {
        return this.tdkLambdaPowerSupplyFactory;
    }

kernel.controllers.PVCiPressureGaugeFactory kernel.models.Kernel.getPressureGaugeFactory

(

)

Returns

A factory useful for creating instances of devices.PVCiPressureGauge

Implements kernel.Kernel.

Definition at line 162 of file main/java/kernel/models/Kernel.java.

                             {
        return this.pvCiPressureGaugeFactory;
    }

List<String> kernel.models.Kernel.getSerialPortNames

(

)

Returns

The names of serial ports available on this machine

Implements kernel.views.CommPortReporter.

Definition at line 92 of file main/java/kernel/models/Kernel.java.

                                                      {
        List<String> portNames = this.portDriver.getSerialPortNames();
        handleLogging(portNames);
        return portNames;
    }

TaskRunner kernel.models.Kernel.getTaskRunner

(

)

Returns

A task runner that manages execution of asynchronous tasks that do not require execution on a special thread

Implements kernel.Kernel.

Definition at line 191 of file main/java/kernel/models/Kernel.java.

                                     {
        return this.runner;
    }

VariableProviderContainer kernel.models.Kernel.getVariableProvidersController

(

)

Returns

A controller that allows mutation of variable providers

Implements kernel.Kernel.

Definition at line 182 of file main/java/kernel/models/Kernel.java.

                                            {
        return this.variableProviders;
    }

kernel.views.VariableProviderContainer kernel.models.Kernel.getVariableProvidersView

(

)

Returns

A set of getters for variable providers managed by an instance of this kernel

Implements kernel.Kernel.

Definition at line 172 of file main/java/kernel/models/Kernel.java.

                                                                            {
        return this.variableProviders;
    }

Boolean kernel.models.Kernel.isPortInUse

(

String

portName

)

Parameters

portName

The name of the port to be determined whether it is open or not

Returns

True if the port is in use, otherwise false

Implements kernel.views.CommPortReporter.

Definition at line 104 of file main/java/kernel/models/Kernel.java.

                                                         {
        SerialPort port = portDriver.getPortByName(portName);
        return port.isPortOpen();
    }

void kernel.models.Kernel.setTaskRunner

(

TaskRunner

runner

)

Parameters

runner

The task runner to be used for executing tasks

Implements kernel.Kernel.

Definition at line 199 of file main/java/kernel/models/Kernel.java.

                                                {
        this.runner = runner;
    }

---

The documentation for this class was generated from the following file:

• main/java/kernel/models/Kernel.java
